Sinotruk HOWO Dump Truck 6x4 30 Ton 10 Wheel Dump Truck For Africa
We have Obtained CCC,ISO9000,BV certificates,we also obtained many other Honorary certificate issued by loccal Government.
Our main products including Dump truck,Vacuum jetting truck,sewer jetting truck,Biogas liquid vacuum truck,oil tanker trailer,
vacuum tank trailer,rear dumper trailer,lowbed trailer, container trailer,side wall cago trailer, chemical liquid tanker truck,
bulk power goods tanker trailer,cement tanker trailer, water tanker semi trailer,full semi trailer,and so on. Total 100 style available for sales.
Dump truck refers to the vehicle that unloads goods by itself through hydraulic or mechanical lifting. Also known as tipper. It is composed of automobile chassis, hydraulic lifting mechanism, cargo compartment and power take-off device.
The car of dump truck can be divided into backward tipping and lateral tipping. Through the control system, the movement of piston rod is controlled. Backward tipping is common, pushing the piston rod to make the car tipping, and a few two-way tipping.
| Truck Model | ZZ3257N3447A1 |
| Dimension(Lx W xH)(unloaded)(mm) | 7835×2496×3386 |
| Approaching angle/Departure angle(°) | 19/27 |
| Overhang(front/rear) (mm) | 1500/1560 |
| Wheel base (mm) | 3425+1350 |
| Max speed(km/h) | 75 |
| Curb weight(kg) | 12380 |
| Loading Weight(kg) | 12490 |
| Engine ( technology, made in China) | Model | WD615.69,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and intercooling, directly injection |
| Fuel type | Diesel |
| HorsePower, max(kw/rpm) | 340HP,247/2200 |
| Emission | EURO2 |
| Fuel tanker capacity (L) | 300 |
| Transmission | Model | HW15710 |
| Brake system | Service brake | Dual circuit compressed air brake |
| Parking brake | spring energy, compressed air operating on rear wheels |
| Steering system | Model | ZF8098 |
| Front axle | HF9 Drum, Steering with double T-cross section beam |
| Rear axle | HC16, Pressed axle housing, central double reduction with differential locks between axles and wheels |
| Tyre | 12.00R20, radial tire |
| Electrical system | Battery | 2X12V/165Ah |
| Alternator | 28V-1500kw |
| Starter | 7.5Kw/24V |
Welcome to your detailed inquiry !
trucks,heavy trucks,heavy duty truck, special vehicles tipper, dumper,dump truck, dump tipper,tipper truck, Special Dump Truck,
tractor truck,trailer,prime mover, semi trailer,special trucks, lorry, cargo truck,van, lorry,goods vehicles, Lorry Truck, concrete mixer, cement mixer, mixer truck,truck mixer, concrete pumper, Concrete mixer truck mini truck,pickup,SUV,CUV, transporter, water tank, tank truck,oil tank, powder tank ,HOWO Refrigerated Truck,Water Tank Truck, sprinkler,road sprinkler, road sweeper, terminal truck, Terminal Tractor, cesspit emptier, garbage compactor, garbage truck, Refuse Compactor, bulldozer,wheel loader,grab,excavator, crane truck, ,truck crane, Refrigerated Truck, Insulated Truck, Box truck, mobile telecommunication truck, special automobiles,Low Bed Trailer with Two Axles, 40‘ Container Trailer, Rig Chassis For Oil Field, Powder Material Transportation Truck, Wood Transportation Truck, Vehicle Crane, Off Road Truck, Van Cargo Box Lorry Truck, Fire Fight Truck.
Product Tags:
|
|

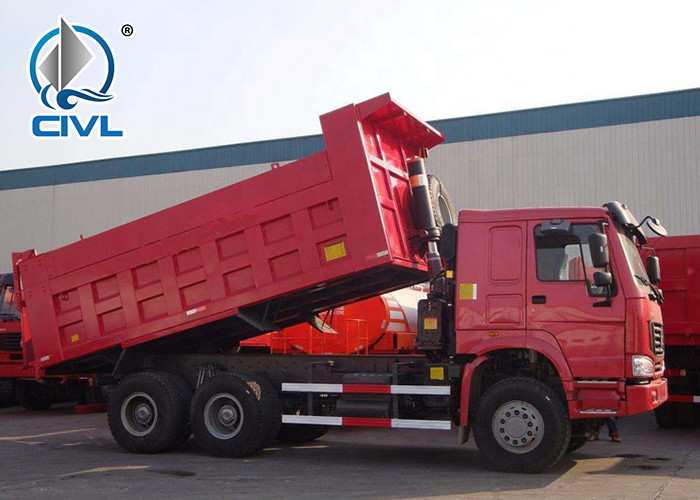

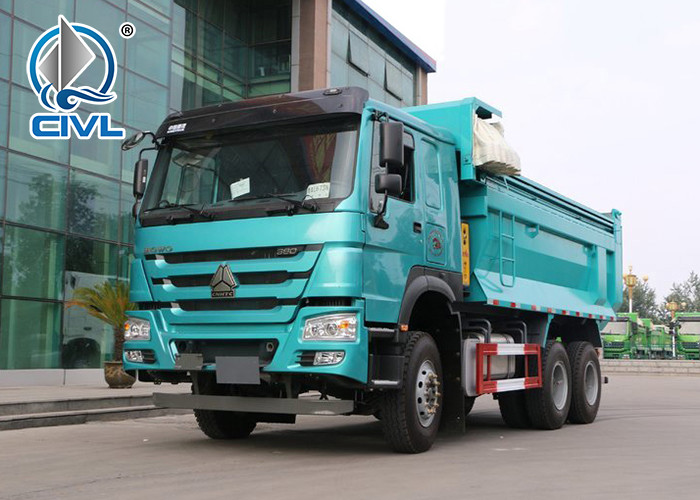

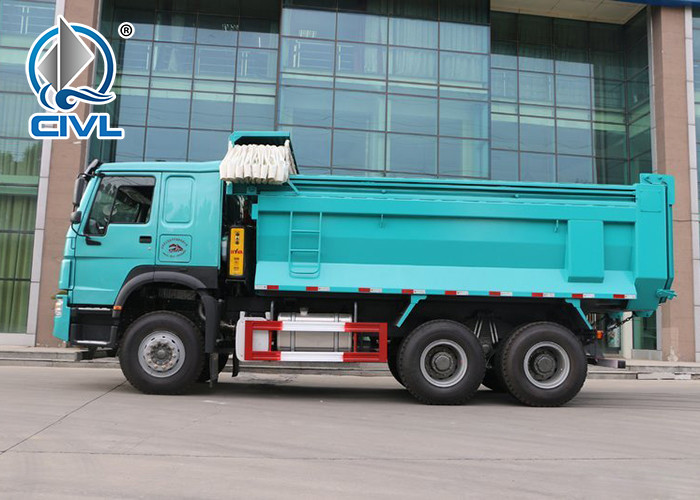

Sinotruk HOWO Dump Truck 6x4 30 Ton 10 Wheel Dump Truck For Africa Images
|
