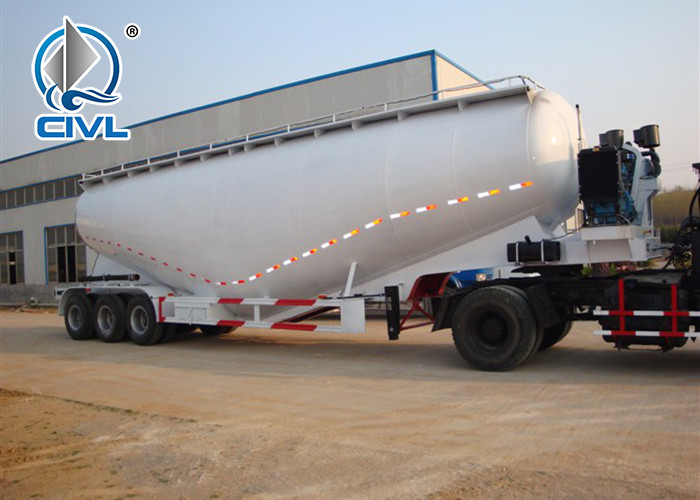

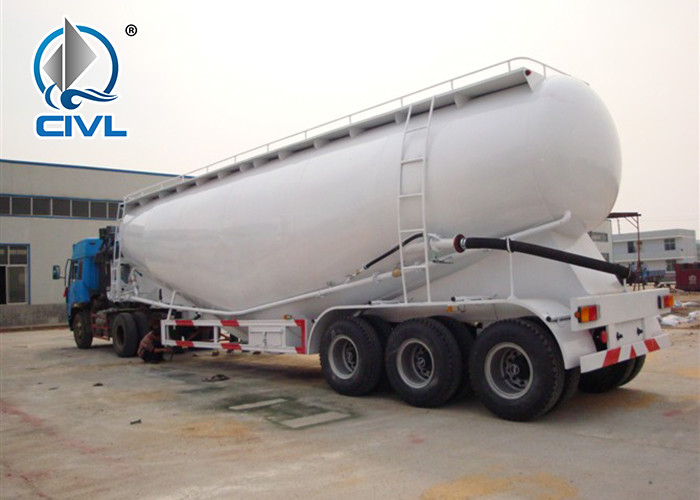

| Main Dimensions of bulk cement tank semi trailer |
| Tank Body |
| Shape | Optional(One Silo with V type or Two, Three Silos Design) |
| Dimension | 12000×2490×3990mm(Adjustable as your requirements) |
| Tare weight | About 7.5-15T bulk cement tank semi trailer |
| Total Volume | 30m³-68m³ bulk cement tank semi trailer |
| Tanker Body Material | 5mm or 6mm Q235 carbon steel bulk cement tank semi trailer |
| End Plate | 5mm or 6mm Q235 carbon steel bulk cement tank semi trailer |
| Diesel Engine | WEICHAI 4100/4102 or other brands |
| Compressor | BOHAI 10m³/12m³or other brands bulk cement tank semi trailer |
| Manhole Cover | Cabon steel. Diameter: 500mm |
| Discharging Valve | Diameter is 3 or 4 inches bulk cement tank semi trailer |
| Discharging Pipe | 3 or 4 inches rubber hose, 1pcs, 6m/each |
| Cat Walk | With(Common model or special design) |
| Chassis |
| Main Beams | Weldding Design, Q345 carbon steel bulk cement tank semi trailer |
| Axle | 2 or 3 axles, 12T/13T/16T, BPW/FUWA/HUAJING brand |
| Landing Gear | JOST(D200T)or CHINA BRAND 28T |
| King Pin | JOST 2.00 or 3.5 inch bolt-in king pin |
| Suspension | Mechanical Suspension(Germany or America type) or Air Suspension |
| Leaf Spring | 90mm(W)×13mm(Thickness)×10(Layer) or 100mm×12mm×12 |
| Pneumatic Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); Two 45L air tanks |
| Rim | 9.00-22.5/8.00-20/8.5-20 bulk cement tank semi trailer |
| Tire | 12.00R22.5, 315/80R22.5, 11.00R20, 12.00R20 |
| ABS | Optional bulk cement tank semi trailer |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paints |
| Accessories | One standard tool box |
| Shipping Terms | By Bulk Cargo or RORO bulk cement tank semi trailer |
