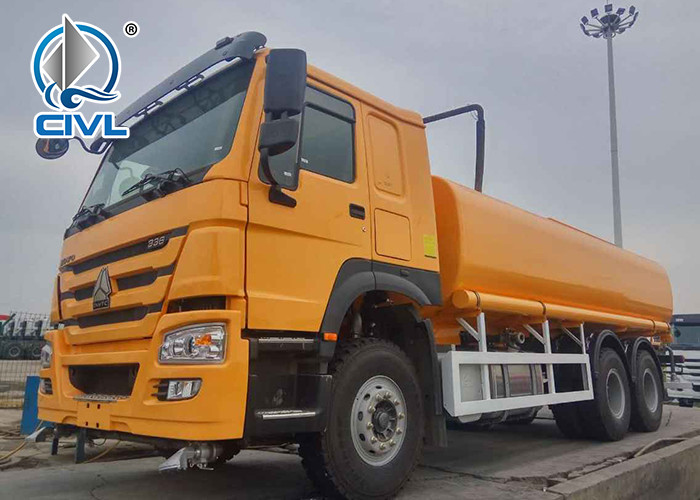

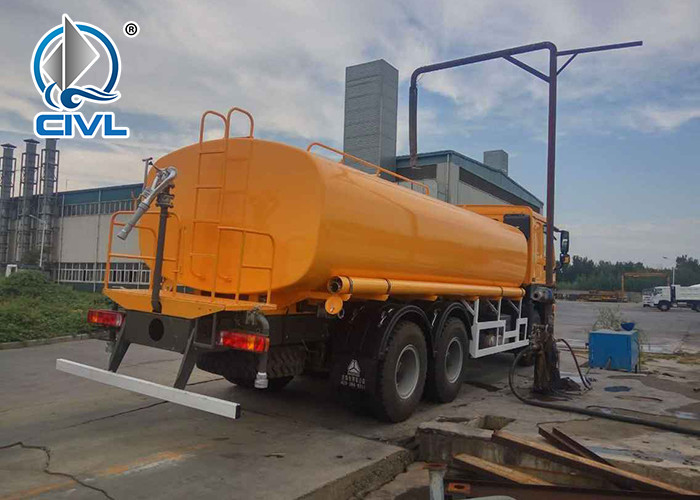

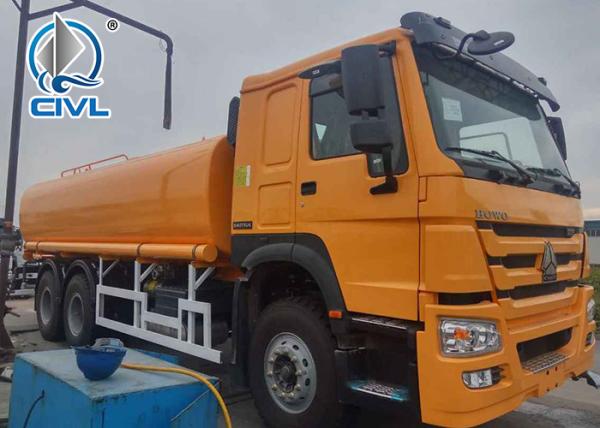

high-pressure cleaning the car with independent high and low pressure two sets of waterway system, high pressure water can cleaning pavement, curbs, sidewalks and fence area, using high-pressure spray gun can be cleaning the road signs, billboards, elevated road. Low pressure water can be carried out on water and dust, green water.
Product features:
1, with independent high and low pressure two sets of water systems, both high pressure cleaning and watering function; the use of auxiliary engine driven high pressure water pump, chassis engine driven low pressure water pump, high pressure cleaning speed can be arbitrary control.
2, before the water spray frame from the cylinder to control the expansion, lifting, deflection, cleaning width from 2.5m to 3.5m can be arbitrarily adjustable nozzle to the ground before the dip angle can be adjusted at 25 degrees ~40;
3, high and low pressure water are equipped with water freezing device interface, to prevent the winter low temperature freezing water element.
4, clear water tank with low water level alarm and prevention of water pump water shortage start alarm function, effective protection of high pressure water pump.
5, low-pressure water system in high pressure water pump adopts double stage impeller centrifugal pump, high efficiency, sprinkler width, the gun range far and optional greening irrigation and suction function.
6, water tank by special anti-corrosion treatment, low price, high performance
Specification:
| Item | Unit | |
| Vehicle model | - | DEL1160Bx4 |
| Cleaning width of water spraying rack | m | 2.5~3.5 |
| Deflection of water spraying rack | ° | ±30 |
| High pressure cleaning capacity | sq.m/h | 25000 |
| Max cleaning water pressure | Mpa | ≥10 |
| Clean water flow | L/min | 134 |
| Spray water flow | L/min | 134 |
| Low pressure sprinkling | L/min | 600~800 |
| Low pressure flushing width | m | ≥24 |
| Water gun range | m | ≥38 |
| Tanks volume | cbm | 7.52 |
| Dimension(L*W*H) | mm | 9000x2495x3030 |
